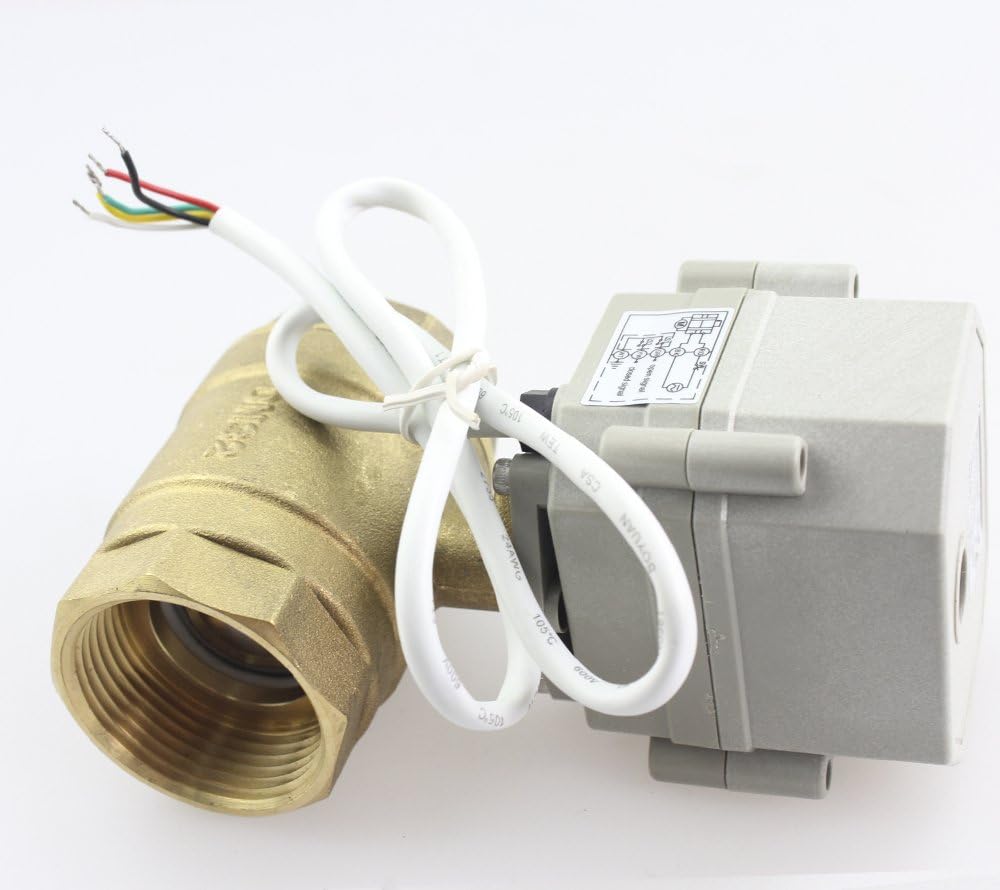

Brass Motorized Ball Valve 1-1/4" DN32 Two Way,Electrical Ball Valve (DC24V CR3-01)
4.4 (78 items)
Limited Time SaleUS$175.79 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 210148615 | Release Date | 2026/04/02 | List Price | US$117.20 | Model Number | 210148615 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Notice(Very Important): 1.AC110-230V and CR5-02 Don't have Manual Override. 2.CR3-03 For 110-230V Also Is Auto Return When Power Off. Product Overview: ◎ Full Bore: 1-1/4"=29mm Bore ◎ Limit Switch Inside, Auto Cut off Power When F.O or F.C ◎ NPT/BSP Available (Default For Buyer From US & CA is NPT, Other is BSP) ◎ Inside Gear All Made by Metal ◎ Brass Valve Body; ◎ ≤5sec Quick Action For Closed or Open Time. Description: ◎ Maxmum Working Pressure: 145PSI ◎ Wire Diagram: ◎CR2-02: Auto Return When Power Off; ◎CR5-02: Position Feedback + Auto Return When Power Off; ◎CR3-03: Auto Return When Power Off For 110-230V ◎ Medium: Water, Gas, Oil; ◎ Voltage: DC24V; ◎ Working Current: Max 0.5Amps When Open; ◎ Cable Length: 0.5 Meters ◎ Medium Temperature:-5° ~ 100° ◎ Manual Override:Yes(But No For CR5-02 and 110-230V) ◎ Indicator:Yes ◎ Open and Closed Time:≤5sec
- Full Bore: 1-1/4"=29mm Bore ,DN32, NPT
- Manual Override:Yes
- NPT Thread;if you need BSP Thread ,please contact us , we can offer
- Brass Valve Body
- Suitable For Gas, Water, Oil,Liquid Temperature: -5°~100°
| Size | DC24V CR3-01 |
|---|---|
| Brand Name | HSH-Flo |
| Unit Count | 1.0 Count |
| Manufacturer | HSH-Flo |
| Material Type | Copper |
| Exterior Finish | Brass |
| Inlet Connection Type | National Pipe Tapered |
| Outlet Connection Type | BSPT |
