Digital Pressure Gauge(Range: 0 to 400 bar) for High Vacuum Refining Plants, Paper Industry, Adjustment Research Centers, Model : Winters DPG Series

flash sale iconLimited Time Sale
Until the end
05
42
42

US$85.20 cheaper than the new price!!

Free shipping for purchases over $99 ( Details )
Free cash-on-delivery fees for purchases over $99
Please note that the sales price and tax displayed may differ between online and in-store. Also, the product may be out of stock in-store.
Used  US$56.80
quantity

Product details

Management number 210907606 Release Date 2026/04/04 List Price US$56.80 Model Number 210907606
Category

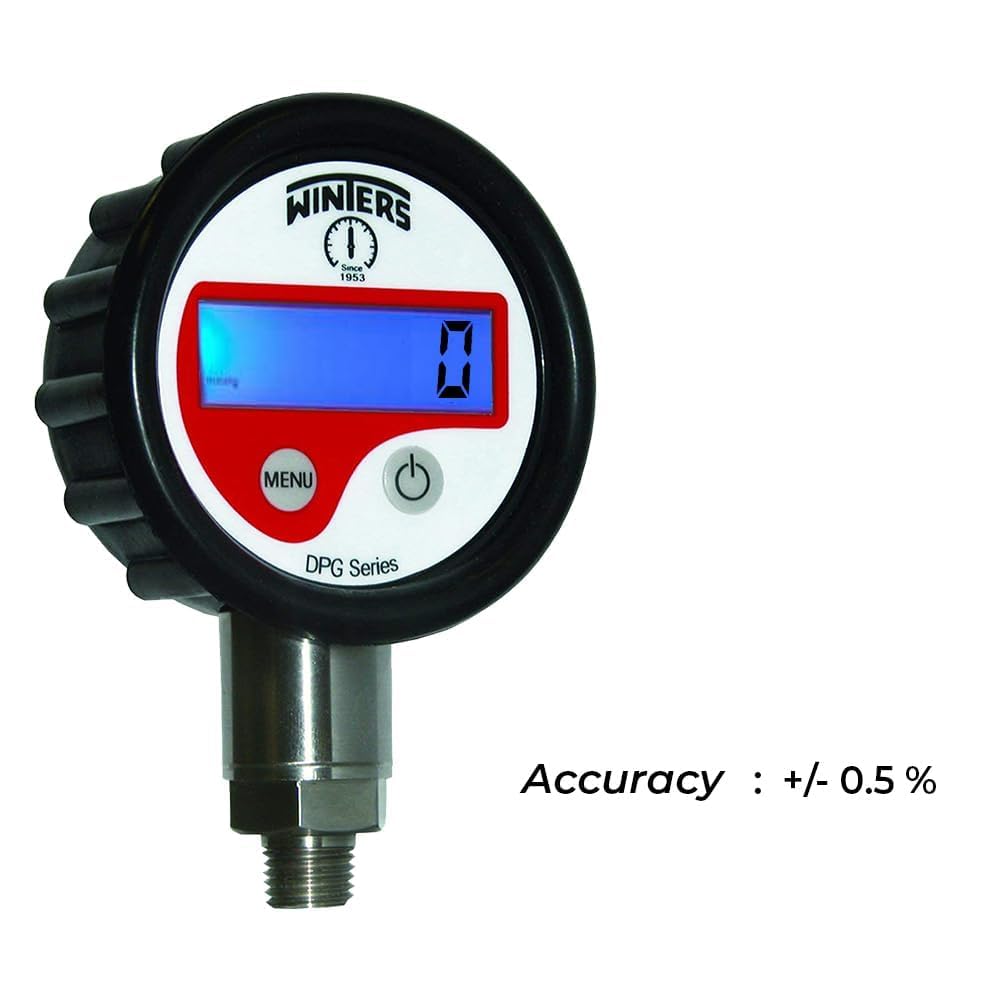

Winters DPG Series Digital Pressure Gauge is a portable instrument that measures pressure whose range is up to 10000 psi. This Digital Pressure Gauge can measure in other units like a Bar, kg/cm2, Mpa, and atm. This Digital Air Pressure Gauge also has a continuous peak pressure indication option for accurate measurement.Applications: Ideal for business and mechanical application in both test estimation and broadly useful establishments.Features Of Digital Pressure Gauge:Measuring Units: Bar, PSI, Kg/cm2/Mpa, AtmThis Digital Air Pressure Gauge has a Re-zero component and nonstop weight perusingBackdrop illumination turns on when on/off catch is squeezed and with weight changesThere is an option for the Display to remain constantly ON

  • Measuring Range: 0 to 400 PSI; Case Size 2.5" (63mm); Case Material ABS (IP64); Rubber Boot Silicone rubber (IP65) | LCD Display 2" x 3/4" (48mm x 16mm); Connection 1/4" NPT 304SS; Sensor 316L welded, Piezo
  • Operation Life 1 million cycles; Power Supply 2 x AAA battery (1.5V); Battery Life 2yrs (auto shut-off mode)
  • Power Mode Auto or manual shut-off; Display Digits 4 digits to 5,000 psi; Pressure Unit Selection psi, bar, kg/cm², MPa
  • Operation Mode : Continuous pressue reading; Response Time : ±3 Hz display refresh rate; Proof / Burst Pressure : 200% / 300% FS; Operating / Storage Temperature : 14°F to 122°F (-10°C to 50°C) -4°F to 167°F (-20°C to 75°C); Accuracy : ±0.5%
  • Supply Scope : Instruction Manual , Calibration Certificate | Applications: Ideal for business and mechanical applications in both test estimation and universally useful establishments including Vacuum pumps, Vacuum frameworks, Pharma hardware, Vacuum suction units, High vacuum refining plants, Paper industry, Adjustment research centers, and so forth.
Brand Name Ace Instruments
Item Weight 250 Grams
Manufacturer Ace Instruments
Material Type Acrylonitrile Butadiene Styrene (ABS), Rubber
Item Dimensions 1.18 x 2.36 x 3.94 inches
Included Components Instruction Manual
