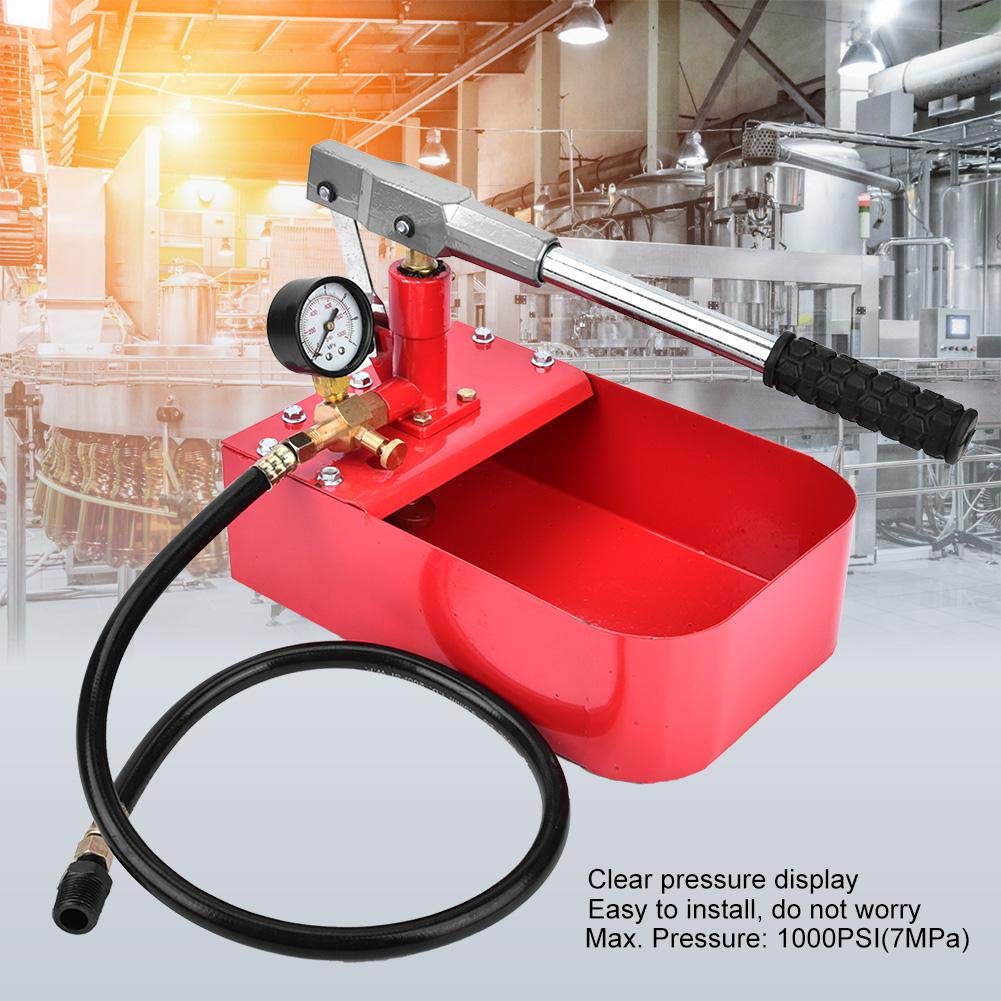

Pressure Test Pump,1000PSI / 7MPa Hydrostatic Hand Test Pump,Pressure Gauge,for Vessels, Pipes, valves, Rubber Fittings

Specification: Item Type: Manual Pressure Test Pump Maximum Testing Pressure: 1000PSI / 7MPa Instructions: 1. Install the machine and secure the pump body to the water with four screws. 2. Install the water pipe and connect it to the pump body (Note: seal connection, add washer, you can also use PTFE tape, otherwise it is easy to leak) 3. Connect the other end of the outlet hose to the tested pipe 4. Fill the test tube with water, vent the air, and then close the pressure relief valve. 5. Fill the water with water, then rock the handle up and down to start the pressure test. 6. When the pressure rises to the required pressure, the pressure can be stopped (normal tap water pressure is 0.3Mpa, high-rise residential building water pressure is 0.4Mpa, water pipe pressure test is generally pressurized to 0.8-1Mpa, 0.1Mpa is equivalent to 1kg pressure) 7. After stopping the back pressure, if the indicated pressure does not drop, it can be proved that the pressure of the pipe is good. On the contrary, it can be proved that the sealing performance of the sealed tube was not good, and there exists a leakage that has caused a pressure drop. Package List: 1 x Pump 1 x Handle 1 x Water Pipe 9 x Seal Ring 1 x User Manual

• Made of iron material, paint spray treatment, rustproof and .
• Pointer type pressure with clear scales for easy reading.
• Long handle makes great leverage for saving effort and reducing hand fatigue.
• Suitable for pressure testing of a variety of pressure vessels, pipes, valves, rubber fittings.
• Widely used in chemical industry, construction, plumbing, oil, coal, metallurgy, shipbuilding and other industries.
